GP

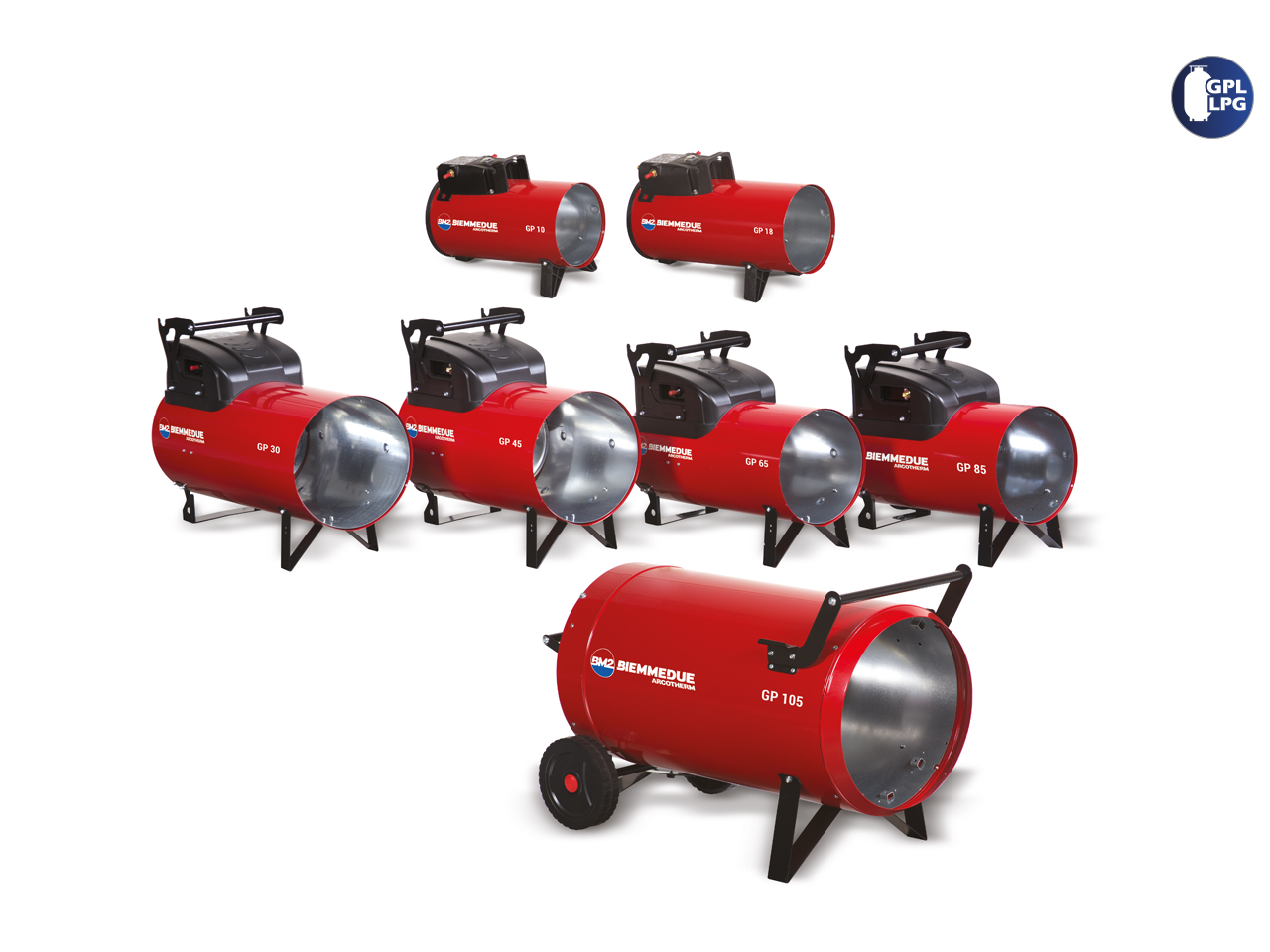

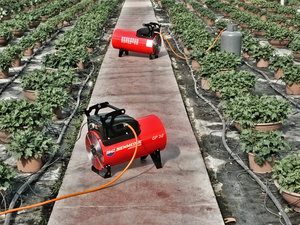

Generatori mobili d’aria calda a combustione diretta manuali e automatici.
Descrizione
Una panoramica delle prestazioni

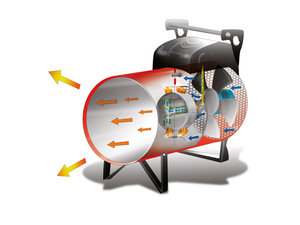

Bruciatore di GPL incorporato
Termostato di sicurezza
Controllo con termocoppia e valvola gas (M)
Controllo elettronico di fiamma con rilevazione a ionizzazione (A)
Cavo alimentazione elettrica con spina (0,3 m GP10 – GP18; 1,5 m GP30 -GP45 -GP65 – GP85 – GP105)

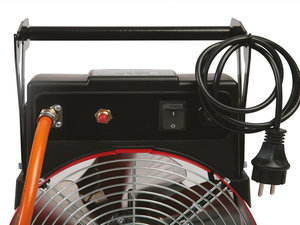

Accensione manuale con sistema piezo-elettrico (M)

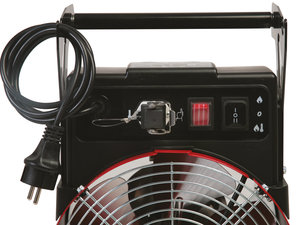

Presa per collegamento a termostato, umidostato o timer (A)
Controllo di bassa tensione di alimentazione (GP105A)
Conforme alle normative UNI EN 1596:2008
Scheda tecnica
MODELLO | GP 10M | GP 18M | GP 30M | GP 45M | GP 65M | GP 85 M | GP 30A | GP 45A | GP 65A | GP 85A | GP 105A |
---|---|---|---|---|---|---|---|---|---|---|---|
versione manuale | versione manuale | versione manuale | versione manuale | versione manuale | versione manuale | versione automatica | versione automatica | versione automatica | versione automatica | versione automatica | |
potenza term. nominale max. | 10,7 kW 9.200 Kcal/h 36.510 BTU/h | 18,58 kW 15.975 Kcal/h 63.400 BTU/h | 31,4 kW 27.000 Kcal/h 107.140 BTU/h | 46,73 kW 40.180 Kcal/h 159.450 BTU/h | 66,25 kW 56.965 Kcal/h 226.055 BTU/h | 84,81 kW 72.925 Kcal/h 810.861289.385 | 31,4 kW 27.000 Kcal/h 107.140 BTU/h | 46,73 kW 40.180 Kcal/h 159.450 BTU/h | 66,25 kW 56.965 Kcal/h 226.055 BTU/h | 84,81 kW 72.925 Kcal/h 810.861289.385 | 108,71 kW 93.590 Kcal/h 371.390 BTU/h |
potenza termica nominale min. | 10,7 kW 9.200 Kcal/h 36.510 BTU/h | 11,3 kW 9.750 Kcal/h 38.560 BTU/h | 15,08 kW 12.965 Kcal/h 51.455 BTU/h | 22,76 kW 19.570 Kcal/h 77.660 BTU/h | 32,33 kW 27.800 Kcal/h 110.315 BTU/h | 40,95 kW 35.210 Kcal/h 139.730 BTU/h | 15,08 kW 12.965 Kcal/h 51.455 BTU/h | 22,76 kW 19.570 Kcal/h 77.660 BTU/h | 32,33 kW 27.800 Kcal/h 110.315 BTU/h | 40,95 kW 35.210 Kcal/h 139.730 BTU/h | 48,81 kW 41.970 Kcal/h 166.545 BTU/h |
consumo gas max. | 0,653 Kg/h | 1,213 Kg/h | 2,014 Kg/h | 2,979 Kg/h | 4,268 Kg/h | 5,53 Kg/h | 2,014 Kg/h | 2,979 Kg/h | 4,268 Kg/h | 5,53 Kg/h | 6,899 Kg/h |
consumo gas min. | 0,653 Kg/h | 0,744 Kg/h | 1,004 Kg/h | 1,454 Kg/h | 2,097 Kg/h | 2,458 Kg/h | 1,004 Kg/h | 1,454 Kg/h | 2,097 Kg/h | 2,458 Kg/h | 3,094 Kg/h |
pressione gas | 0,3 bar | 0,7÷0,3 bar | 1,5÷0,4 bar | 1,5÷0,4 bar | 1,5÷0,4 bar | 1,5÷0,4 bar | 1,5÷0,4 bar | 1,5÷0,4 bar | 1,5÷0,4 bar | 1,5÷0,4 bar | 1,5÷0,4 bar |
rendimento | 100% | 100% | 100% | 100% | 100% | 100% | 100% | 100% | 100% | 100% | 100% |
portata d'aria | 420 m³/h | 520 m³/h | 1.100 m³/h | 1.250 m³/h | 1.950 m³/h | 2.550 m³/h | 1.100 m³/h | 1.250 m³/h | 1.950 m³/h | 2.550 m³/h | 3.700 m³/h |
temperatura aria | 35 a 20°C | 35 a 20°C | 49 a 20°C | 62 a 20°C | 87 a 20°C | 65 a 20°C | 49 a 20°C | 62 a 20°C | 87 a 20°C | 65 a 20°C | 71 a 20°C |
potenza elettrica | 46 W | 50 W | 90 W | 112 W | 140 W | 240 W | 90 W | 112 W | 140 W | 240 W | 400 W |
alimentazione elettrica | 230V 1ph 50Hz | 230V 1ph 50Hz | 230V 1ph 50/60Hz | 230V 1ph 50/60Hz | 230V 1ph 50/60Hz | 230V 1ph 50Hz | 230V 1ph 50/60Hz | 230V 1ph 50/60Hz | 230V 1ph 50/60Hz | 230V 1ph 50Hz | 230V 1ph 50Hz |
quantità per pallet | 72 pz | 72 pz | 36 pz | 24 pz | 24 pz | 18 pz | 36 pz | 24 pz | 24 pz | 18 pz | 12 pz |
dimensione | 367 x 180 x 280 mm | 425 x 180 x 280 mm | 505 x 277 x 511 mm | 575 x 277 x 511 mm | 580 x 317 x 538 mm | 700 x 317 x 538 mm | 505 x 277 x 511 mm | 575 x 277 x 511 mm | 580 x 317 x 538 mm | 700 x 317 x 538 mm | 835 x 438 x 606 mm |
Peso | 5 kg | 5,5 kg | 10 kg | 13,6 kg | 14 kg | 16 kg | 10 kg | 13,6 kg | 14 kg | 16 kg | 26 kg |
