EK

Generatori mobili d’aria calda a corrente elettrica.

Svuota

Descrizione

Una panoramica delle prestazioni

Resistenze elettriche corazzate AISI 321 avvolte a profilo ad alto scambio termico

Termostato ambiente incorporato

Selettore di potenza

Cavo alimentazione elettrica (1,5 m) con spina (EK 3)

Termostato di sicurezza a riarmo manuale

Griglia anteriore in acciaio inox

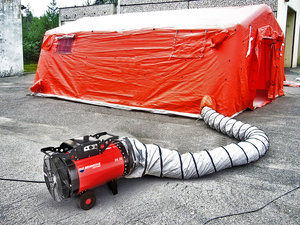

Canalizzabile fino a 6 m (EK 10, EK 15, EK 22, EK 30)

Possibilità di impilamento

Presa termostato esterno (EK 30)

Scheda tecnica

MODELLOEK 3 CEK 10 CEK 15 CEK 22 CEK 30 C
potenza term. nominale max.3 kW
2.580 Kcal/h
10.235 BTU/h
10 kW
8.600 Kcal/h
34.120 BTU/h
15 kW
12.900 Kcal/h
51.185 BTU/h
22 kW
18.915 Kcal/h
75.065 BTU/h
30 kW
25.818 Kcal/h
102.455 BTU/h
potenza termica nominale min.1,5 kW
1.290 Kcal/h
5.185 BTU/h
6,6 kW
5.675 Kcal/h
22.520 BTU/h
10 kW
8.600 Kcal/h
34.120 BTU/h
15 kW
12.900 Kcal/h
51.185 BTU/h
20 kW
17.212 Kcal/h
68.304 BTU/h
rendimento100%100%100%100%100%
portata d'aria450 m³/h1.500 m³/h2.000 m³/h3.050 m³/h3.900 m³/h
salto termico44,5-32 a 20°C48,3-30,5 a 20°C54,3-35 a 20°C56-38 a 20°C56-38 a 20°C
corrente massima13-6,5 AQ3,6-7,1 A21-13,8 A30-21 A43-28 A
alimentazione elettrica230V 1ph 50Hz400V 3ph 50Hz400V 3ph 50Hz400V 3ph 50Hz400V 3ph 50/60Hz
connessionin° 3P+↓
3P+↓+N
n° 3P+↓
3P+↓+N
n° 3P+↓
3P+↓+N
n° 3P+↓
3P+↓+N
n° 3P+↓+N
quantità per pallet72 pz36 pz24 pz18 pz6 pz
dimensione367 x 180 x 280 mm505 x 277 x 511 mm575 x 277 x 511 mm700 x 313 x 538 mm795 x 540 x 706 mm
Peso5 kg13 kg1015 kg21 kg38 kg
